Wood Chip Dryer

Wood Chip Dryer

Key Specifications

Blast capacity: 350-30500m³/h

Water evaporation capacity: 12-1000kg/h

Host inner diameter: 200-1600mm

Floor space: 15-80㎡

Application Fields: industries of straw briquette fuel, charcoal machinery, wood flour fuel, sawdust briquette and husbandry


Minerals Processed

Applicable Materials: wood chips, wood flour, wood shavings, saw dust, wood shavings, etc.

  • Sawdust
  • Wood chips

Get the Latest Discount

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Overview

Wood Chip Dryer Introduction

Our FTM® range of highly efficient chip drum dryers is the result of more than 30 years research and development. During the 30 years we have been able to reduce the electrical consumption of the drum dryers by 70% whilst doubling the wood chip throughput. We Fote are confident that our FTM® dryer range is one of the most efficient wood chip dryer on the world market.

Wood Chip Dryer

FTM Chip Dryer

wood chips

Wood Chips

The wood chip dryer is also known as drying wood chip machine, wood shavings dryer or wood chip drying machine. Wood chip dryer is designed for wood chips, sawdust, sawdust, wood shavings and other materials. Fote Machinery is a famous wood chip dryer manufacturer. The products all have high quality and perfect capacity. Wood chip dryer price is quite reasonable and the quality is guaranteed. You can send an e-mail or leave a message to get more information about our wood shavings dryer. We are looking forward to your cooperation.

Wood Chip Dryer 1

Chip Dryer Work Site

Wood Chip Dryer 2

Wood Chip Dryer Work Site

This kinds of dryers is one of the largest rotary drying systems we design. We FTM provide on-site start up and training by our professional engineers to assist in wood chip dryer installation. This after sale service ensures that your wood chip dryer works Normally and efficiently after installation. We’ve completed projects for customers across the North America, so we’re confident we can accommodate your needs.

Wood Chip Dryer Work Site

Wood Chip Dryer Installation

The products all have high quality and perfect service. Wood chip dryer price is quite reasonable and the quality is guaranteed. You can send an e-mail or leave a message to get more information about our wood shavings dryer. We are looking forward to your cooperation.

Chip Dryer Features

1. High productivity.

2. Energy saving and pollution free.

3. Long life expectancy.

4. Costs saving.

Wood Chip Dryer work site 2

Installation Method of Wood Chip Dryer:

1. Wood shavings dryer should be installed on a horizontal concrete foundation, using anchor bolts.

2. Pay attention to the host body perpendicular to the level.

3. After the installation, check for whether there are loose parts bolted or host doors are fastened,

4. Supply line and the control switch according to device's power.

5. After finish checking, conduct no load test. If test is qualified, the wood chip dryer can be used to make production.

Wood Chip Dryer

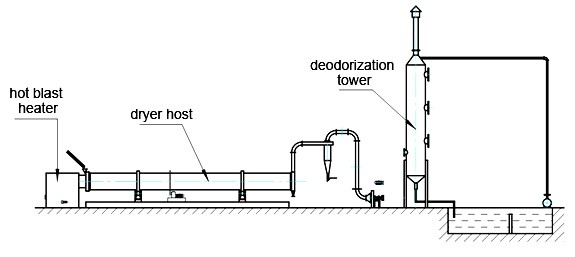

Wood Chip Dryer Principle

Wood chip dryer is mainly composed of air heaters, feeding machine, air flow drying tube, cyclone separator, and draught fan.And the main working principle is the wood chips go into wood chip dryer or and wood chip dryer under the effect of injection tube and rotating cylinder effects, the materials boil and fluidify in the cylinder. The hot-blast makes full contact with the material to complete drying.

wood chip dryer working principle

chip dryer working principle

Wood Chip Dryer Supplier

At Henan Fote Heavy Machinery Co,.ltd we’re proud to design and build wood chip drying systems for customers worldwide. We can design and build wood chip dryers to meet your specifications at Henan Fote, which is based in Zhengzhou city, Henan province, China. Trust our experts to design and fabricate the equipment to meet your business needs, whether you are Animal Bedding or Pellet Mill Operation.

FTM Chip Dryer Engineers

Technology Data

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
